Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
Three Piece (3-PC), Ball
Threaded, Female NPT and Welded Ends

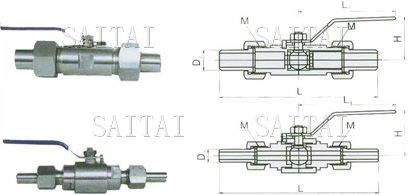

PN 6.4 MPa- Welded Ends-Dimensions:
| SPECIFICATION | L | Do | L1 | H |
| DN6 | 115 | Φ12 | 110 | 44 |
| DN10 | 120 | Φ14 | 110 | 44 |
| DN15 | 125 | Φ20 | 110 | 44 |
| DN20 | 128 | Φ28 | 110 | 50 |
PN 6.4 MPa-Threaded Ends-Dimensions:
SPECIFICATION |
Do | L | L1 | H | NOMINAL PRESSURE |
| DN3 | Φ6 | 86 | 110 | 44 | =6.4MPa |
| DN6 | Φ8 | 90 | 110 | 44 | =6.4MPa |
| DN10 | Φ14 | 95 | 110 | 44 | =6.4MPa |
PN 6.4 MPa- Female NPT Ends-Dimensions:
| NO | M1 | M2 | L | L1 | H |
| 1 | M20×1.5 | M20×1.5left | 145 | 110 | 44 |
| 2 | G1/2 | M20×1.5left | 145 | 110 | 44 |
