25l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

亿万28:5L/S Series 10L/S Series 亿万28:15L/S Series 亿万28:20L/S Series 亿万28:25L/S Series 30L/S Series
亿万28:35L/S Series40/45 L/S Series 50/55 L/S Series 亿万28:60/65 L/S Series 亿万28:70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC3.1/25-80 25 0.31 13.8 1500 69 3.6
XBC4.5/25-80 0.45 1800
XBC4.7/25-80 25 0.47 20.6 1500 69 3.6
XBC6.8/25-80 0.68 1800
XBC6.4/25-80 25 0.64 28.0 1500 69 3.6
XBC9.2/25-80 0.92 1800

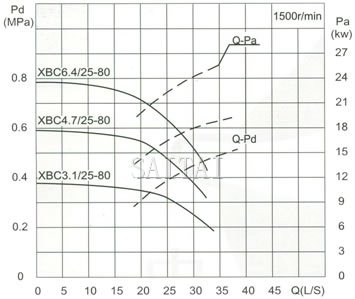

Capacity:25 L/S Pressure:Pressure:0.31-0.92MPa
Capacity:25 L/S Pressure:Pressure:0.31-0.92MPa

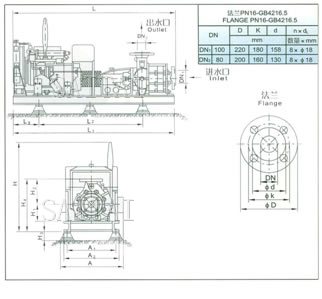

Structure Of 25l/S Xbc Type Diesed Engine Fire Pump
Structure Of 25l/S Xbc Type Diesed Engine Fire Pump

II 25l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC3.1/25-80
4.5		 200 325 87 625 900 1495 1290 870 180 445 505 - JGD3 4 447
XBC4.7/25-80
6.8		 200 325 87 625 900 1590 1385 965 180 445 505 - JGD3 4 510
XBC6.4/25-80
9.2		 200 325 87 625 900 1885 1675 1225 180 445 505 - JGD3 4 553
