60/65 L/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

亿万28:5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 亿万28:30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC5.1/60-125 60 0.51 40.4 1500 72 3.0
XBC7.3/60-125 0.73 1800
XBC7.4/60-125 60 0.74 73.5 1500 72 3.0
XBC9.0/60-125 60 0.90 73.5 1500 72 3.0
XBC5.4/65-125 65 0.54 58.8 1500 75 3.2
XBC8.8/65-125 65 0.88 88.3 1500 75 3.2

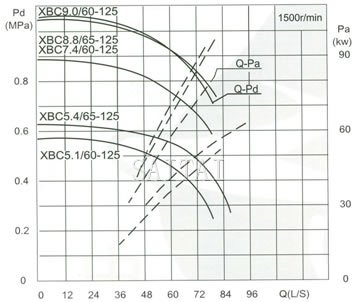

Capacity Drawing
Capacity:60/65 L/S Pressure:0.51-0.88MPa

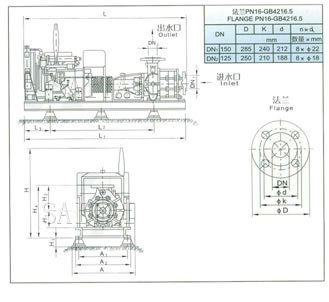

Structure Of 60/65 L/S Xbc Type Diesed Engine Fire Pump
Structure Of 60/65 L/S Xbc Type Diesed Engine Fire Pump

II 60/65 L/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC5.1/60-125
7.3		 280 430 133 830 2050 2260 2420 1750 300 445 505 690 JGD4 4 783
XBC7.4/60-125 280 430 133 830 1215 2204 2004 1354 300 694 800 777 JGD4 4 1214
XBC9.0/60-125 280 430 133 830 1215 2204 2004 1354 300 694 800 777 JGD4 4 1214
XBC5.4/65-125 280 430 133 830 1215 2074 1874 1224 300 694 800 777 JGD4 4 1143
XBC8.8/65-125 280 430 133 830 1365 2434 2344 1694 300 694 800 795 JGD4 4 1504
